Dust Collector Pulse Jet Valve Spare Parts are the heart of reverse jet dust collection systems, ensuring efficient bag cleaning and maintaining optimal filtration performance. To complement these valves and provide our customers with a comprehensive solution, Qingdao Star Machine offers a wide range of high quality Dust Collector Pulse Jet Valve Spare Parts.
Our extensive selection of Dust Collector Pulse Jet Valve Spare Parts includes pilot solenoid valves, solenoid coils, seal rings, rubber disc, diaphragms, plungers, pilot valve covers, and more. These components are meticulously crafted to exacting standards, ensuring precise fit and optimal performance. Our fittings, in particular, boast tolerance range values within 0.1, guaranteeing compatibility with optipow valve models and maximizing pulse valve cleaning efficiency.
We are committed to providing our customers with a seamless purchasing experience and ensuring that their pulse valves operate smoothly and efficiently. Our team of experienced engineers is always available to offer guidance and support, from selecting the right Dust Collector Pulse Jet Valve Spare Parts to troubleshooting any issues that may arise. We also maintain long-standing relationships with stable customers in Europe and the United States, a testament to the quality of our products and services.
Product name | Part number |
Membrane ② | V4549902-0100 |
O-Ring (Fluor rubber 64.5 X 3.1)③ | 8003-5573 |
O-Ring (Nitril 70sH 64.5 X 3.1)③ | 2136-1422 |
O-Ring (143 X 3.1)④ | 2136-1441 |
Pilot Cover⑤ | V3630501-0100 |
Plate⑥ | V3630524-0100 |
Plunger⑦ | V3629022-0100 |
Rubber Disc⑧ | V3640660-0100 |
Solenoid Valve(24 V DC)⑨ | V3611471-0100 |
Solenoid Valve(100 V, 60 Hz)⑨ | V3611471-0201 |
Solenoid Valve(110 V, 50 Hz)⑨ | V3611471-0300 |
Solenoid Valve (110 V, 60 Hz)⑨ | V3611471-0200 |
Solenoid Valve(120 V, 60 Hz)⑨ | V3611471-0400 |
Solenoid Valve(120V, 60 Hz-UL CERTlFlED)⑨ | V3640645-0200 |
Solenoid Valve(230V, 50 Hz)⑨ | V3611471-0500 |

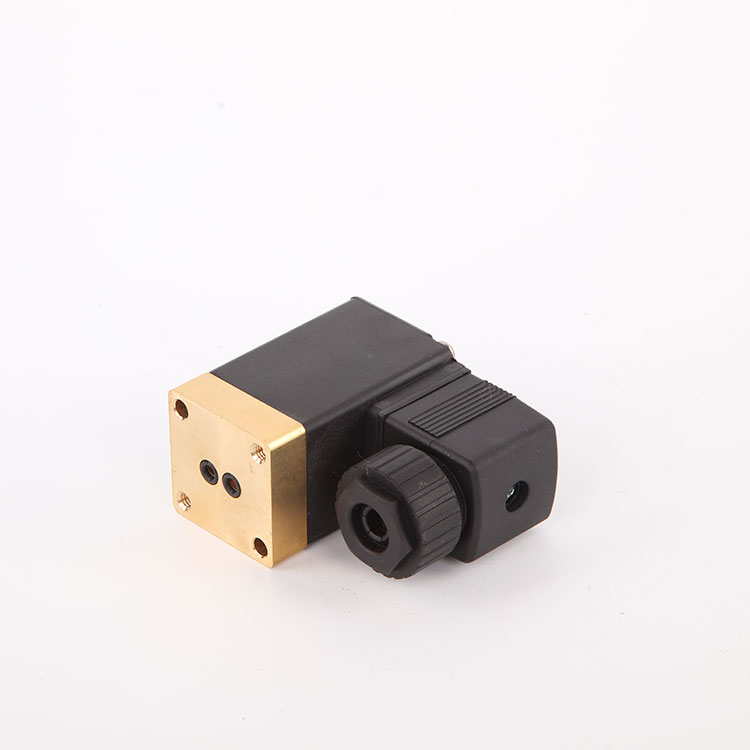

SMCC advanced plunger pulse solenoid valve coil of electromagnetic pulse valve is usually wrapped with enameled wire or gauze wrapped wire on the skeleton, and insulated with high flame retardant insulation material. The number of turns, wire diameter, and material of the skeleton of the coil can all affect the electromagnetic force and sensitivity of the plunger pulse solenoid valve coil.

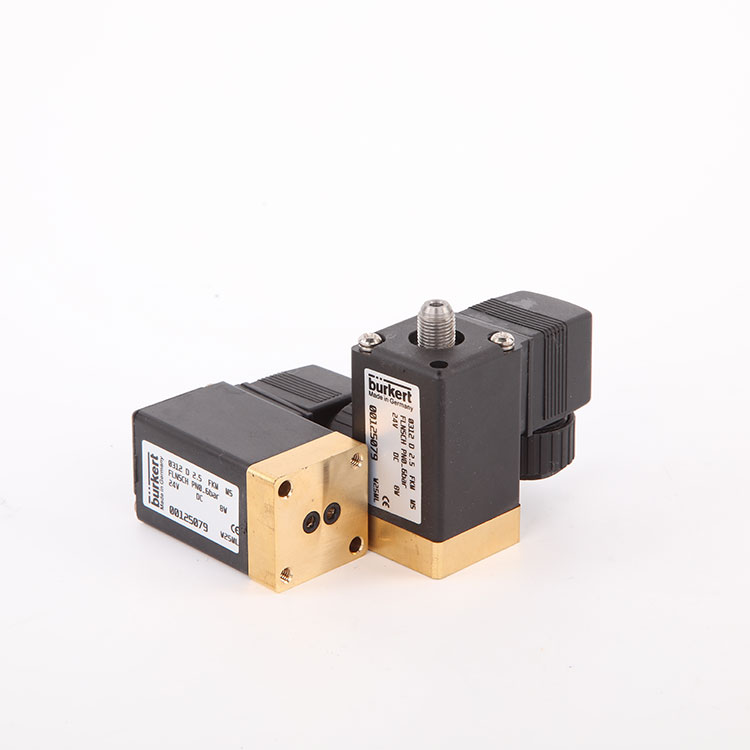

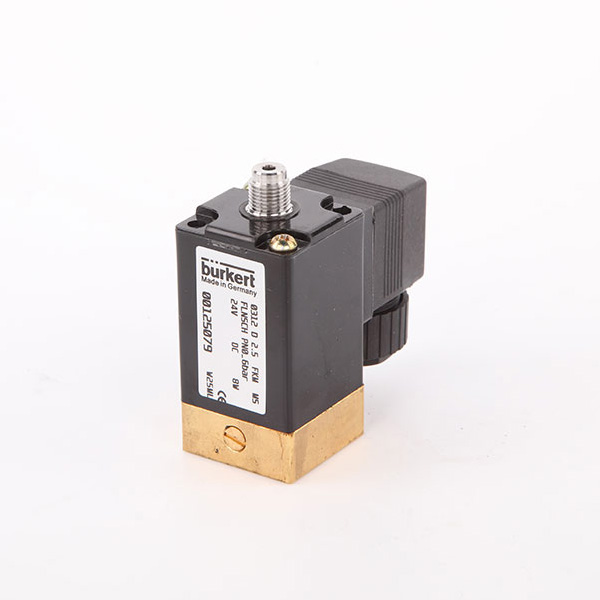

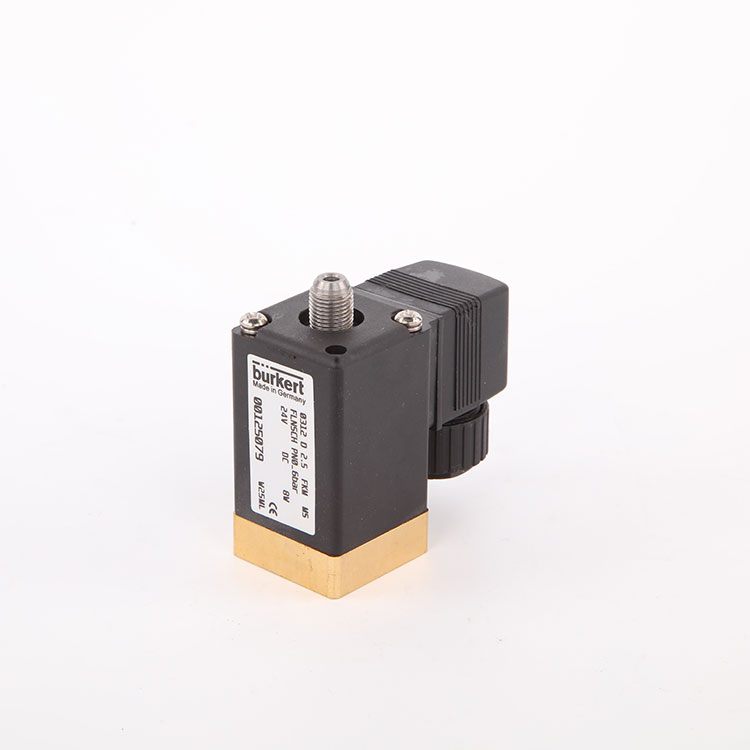

Read MoreSend InquiryThe SMCC 00125079 switch valve is a switch valve base on pulse jet solenoid valve coil product produced by Bürkert in Germany. The Bürkert 00125079 switch valve is mainly used for pipelines, and the function of pulse jet solenoid valve coil is to control the flow of fluids in pipelines. The valve core material is steel, with two positions and two ways, and the model is 00125079.

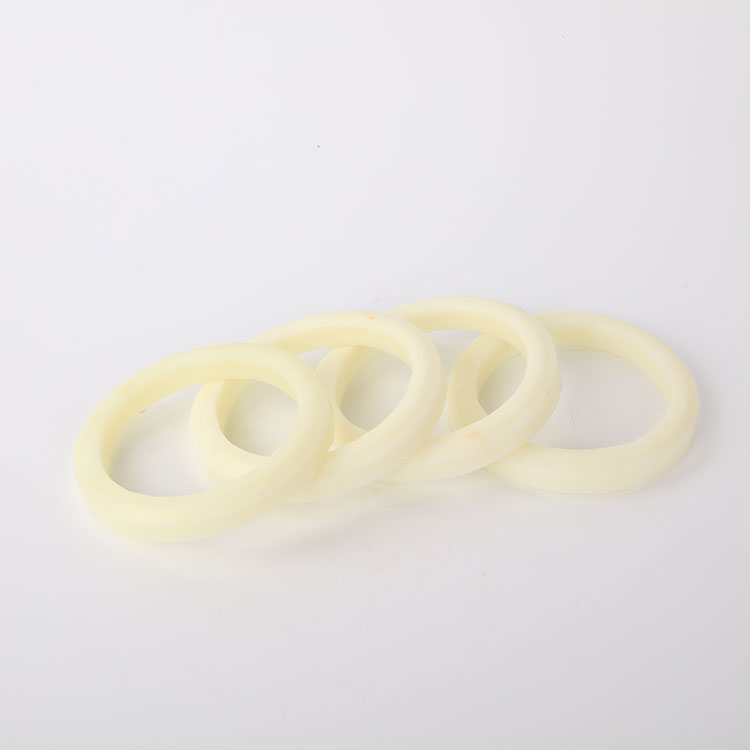

Read MoreSend InquiryQingdao Star machine provides high quality Optipow 135 valve rubber disc. It is a main component of the Optipow pulse valve, pulse jet valve rubber disc mainly used to reduce the impact force during the opening and closing process of the Optipow 135 pulse jet valve, reduce noise, and extend the service life of the pulse jet valve.
Read MoreSend InquiryQingdao Star Machine’s high quality Optipow 105 Filter Plunger is important of the OPTIPOW 105 Pulse Jet Valve.A plunger that prevents impurities or particles from entering the system, usually in hydraulic or pneumatic transmission systems. These plungers usually have good wear and corrosion resistance, which can effectively protect the efficient operation of the entire system.
Read MoreSend InquiryQingdao Star Machine Fluoro Rubber O-Ring is made of fluorine rubber which has high temperature, fuel, and chemical resistance, Hardness of 70A for resistance to penetration. It can be used across a wide temperature range from -4 degrees F(-20 degrees C) to 482 degrees F(250 degrees C). It is seals for fuel handling systems, high temperature/low compression set applications, chemical exposure situations, etc. It provides sealing and prevents leaking for a wide range of applications such as plumbing, machinery, hydraulic & pneumatic repairs and much more.
Read MoreSend InquiryThe Qingdao Star Machine nitrile rubber o-ring for seal for seal are used in a wide range of industrial manufacturing applications, such as in pumps, compressors, and hydraulic systems, to prevent leaks and maintain pressure. We are not only a manufacturer but also a leader in the nitrile rubber o-ring for seal industry.
Read MoreSend Inquiry
