Air Filter Size (Nominal) | Actual Size | Air Filter Size (Nominal) | Actual Size |
10x10x1'' | 9.5 x 9.5 x .75'' | 16x24x1'' | 15.375 x 23.375 x .75'' |
10x20x1'' | 9.5 x 19.5 x .75'' | 16x25x1'' | 15.5 x 24.5 x .75'' |
10x24x1'' | 9.5 x 23.5 x .75 | 16x30x1'' | 15.5 x 29.5 x .75'' |
10x30x1'' | 9.5 x 29.5 x .75'' | 16x32x1'' | 15.5 x 31.5 x .75'' |
12x12x1'' | 11.75 x 11.75 x .75'' | 17x22x1'' | 16.5 x 19.5 x .75'' |
12x16x1'' | 11.5 x 15.5 x .75'' | 18x18x1'' | 17.5 x 17.5 x .75'' |
12x18x1'' | 11.5 x 17.5 x .75'' | 18x20x1'' | 17.5 x 19.5 x .75'' |
12x20x1'' | 11.5 x 19.5 x .75'' | 18x22x1'' | 17.5 x 21.5 x .75'' |
12x24x1'' | 11.375 x 23.375 x .75'' | 18x24x1'' | 17.375 x 23.375 x .75'' |
12x25x1'' | 11.5 x 24.5 x .75'' | 18x25x1'' | 17.5 x 24.5 x .75'' |
12x30x1'' | 11.625 x 29.5 x .75'' | 18x30x1'' | 17.5 x 29.5 x .75'' |
12x36x1'' | 11.5 x 35.5 x .75'' | 20x20x1'' | 19.5 x 19.5 x .75'' |
14x14x1'' | 13.5 x 13.5 x .75'' | 20x21x1'' | 19.5 x 20.5 x .75'' |
14x18x1'' | 13.5 x 17.5 x .75'' | 20x22x1'' | 19.5 x 21.5 x .75'' |
14x20x1'' | 13.5 x 19.5 x .75'' | 20x24x1'' | 19.375 x 23.375 x .75'' |
14x24x1'' | 13.375 x 23.375 x .75'' | 20x25x1'' | 19.5 x 24.5 x .75'' |
14x25x1'' | 13.5 x 24.5 x .75'' | 20x30x1'' | 19.5 x 29.5 x .75'' |
14x30x1'' | 13.5 x 29.5 x .75'' | 22x22x1'' | 21.5 x 21.5 x .75'' |
15x20x1'' | 14.5 x 19.5 x .75'' | 24x24x1'' | 23.375 x 23.375 x .75'' |
15x25x1'' | 14.5 x 24.5 x .75'' | 24x30x1'' | 23.5 x 29.5 x .75'' |
16x16x1'' | 15.75 x 15.75 x .75'' | 25x25x1'' | 24.5 x 24.5 x .75'' |
16x18x1'' | 15.5 x 17.5 x .75'' | 30x30x1'' | 29.5 x 29.5 x .75'' |
16x20x1'' | 15.5 x 19.5 x .75'' | 30x36x1'' | 29.5 x 35.5 x .75'' |
2 Inch Deep Filters | |||
10x20x2'' | 9.5 x 9.5 x 1.75'' | 18x20x2'' | 17.5 x 19.5 x 1.75'' |
12x12x2'' | 11.5 x 11.5 x 1.75'' | 18x24x2'' | 17.375 x 23.375 x 1.75'' |
12x20x2'' | 11.5 x 19.5 x 1.75'' | 18x25x2'' | 17.5 x 24.5 x 1.75'' |
12x24x2'' | 11.375 x 23.375 x 1.75'' | 20x20x2'' | 19.5 x 19.5 x 1.75'' |
12x25x2'' | 11.5 x 24.5 x 1.75'' | 20x24x2'' | 19.375 x 23.375 x 1.75'' |
14x20x2'' | 13.375 x 19.375 x 1.75 | 20x25x2'' | 19.5 x 24.5 x 1.75'' |
14x25x2'' | 13.375 x 24.375 x 1.75'' | 20x30x2'' | 19.5 x 29.5 x 1.75'' |
15x20x2'' | 14.5 x 19.5 x 1.75'' | 24x24x2'' | 23.375 x 23.375 x 1.75'' |
16x16x2'' | 15.5 x 15.5 x 1.75'' | 24x30x2'' | 23.5 x 29.5 x 1.75'' |
16x20x2'' | 15.5 x 19.5 x 1.75'' | 25x25x2'' | 24.5 x 24.5 x 1.75'' |
16x24x2'' | 15.375 x 23.375 x 1.75'' | 25x28x2'' | 24.5 x 27.5 x 1.75'' |
16x25x2'' | 15.5 x 24.5 x 1.75'' | 30x36x2'' | 29.5 x 35.5 x 1.75'' |
18x18x2'' | 17.5 x 17.5 x 1.75'' | ||
4 Inch Deep Filters | |||
12x24x4'' | 11.375 x 23.375 x 3.625'' | 20x24x4'' | 19.375 x 23.375 x 3.625'' |
16x20x4'' | 15.375 x 19.375 x 3.625'' | 20x25x4'' | 19.375 x 24.375 x 3.625'' |
16x25x4'' | 15.375 x 24.375 x 3.625'' | 24x24x4'' | 23.375 x 23.375 x 3.625'' |
18x24x4'' | 17.375 x 23.375 x 3.625'' | 25x29x4'' | 24.375 x 28.375 x 3.625'' |
20x20x4'' | 19.375 x 19.375 x 3.625'' |
An HVAC furnace air filter is positioned between the air intake and the heating coil in your system. Its job is important for both your family's health and the health of your HVAC unit. The right furnace filter can help remove harmful particles from the air while ensuring everything runs smoothly.
Read MoreSend InquiryA high efficiency pocket bag filter is an air filter used in HVAC systems, featuring 3 to 12 internal bags. Pocket filters are designed mainly to reduce dust and other airborne particles, effectively filtering out at least 90% of these particles from the air.

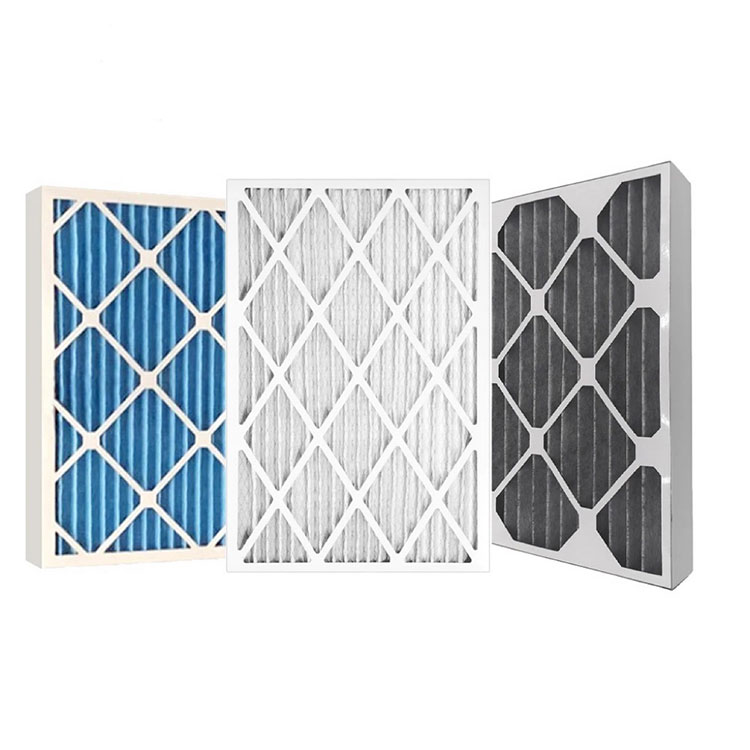

Read MoreSend InquiryThe primary pleated panel air filter is for particles 5μm in diameter.Domestic quality non-woven fabric, glass fibre or imported polyester fibre as filter material, wedge folded shape to increase filtration area, with high strength moisture resistant cardboard frame, made of plate structure.
