DB116 Nitrile Diaphragm Repair Kits for VNP216

As a professional filtration problem solving company, Qingdao Star Machine can provide many types of pulse valve diaphragm parts repair kits, such as DB116 Nitrile Diaphragm Repair Kits for VNP216. These repair kits can solve a wide range of problems that customers encounter when using different types of pulse valves, allowing them to maintain production for less money, saving them money.

Send Inquiry

Product Description

The DB116 Nitrile Diaphragm Repair Kits for VNP216 is for the Mecair 200 series diaphragm pulse jet valves. The 200 series is a range of diaphragm valves suitable for dust collection applications, particularly cleaning filter bags, cartridges, jacket filters, ceramic filters and reverse pulse sintered metal fiber filters. On a Series 200 valve, the inlet port forms a 90° angle with the outlet port.

DB116 Nitrile Diaphragm Repair Kits Characteristics:

1. The DB116 diaphragm, whether made of rubber or fabric-reinforced rubber, is a precise component used to monitor pressure or convert fluid pressure into driving force.

2. Fabric-reinforced rubber diaphragms repair kits incorporate an engineered fabric layer in their construction, providing significant design flexibility.

3. Fabrics such as polyester, nylon, and silk are commonly used in diaphragms for various applications, including those exposed to high temperatures or requiring exceptional strength.

4. Advantages of fabric-reinforced diaphragms include:

- No leakage

- No need for lubrication

- No breakaway force

- Minimal friction

- Functionality across a wide range of pressures

- High strength

- Cost-effectiveness

- Simple design

- Versatility

5. EPDM and FKM materials are both available for diaphragm construction.

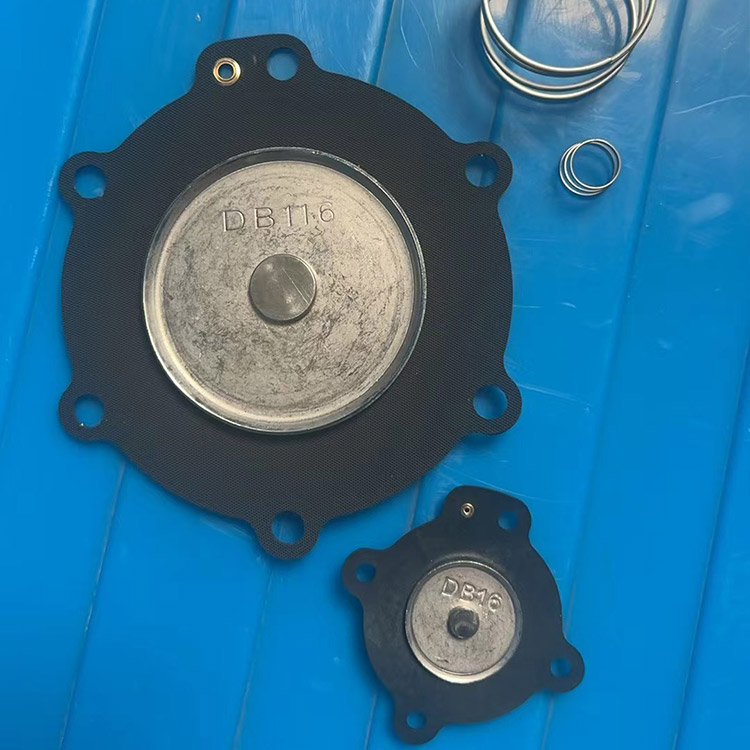

DB116 Nitrile Diaphragm Repair Kits for VNP216

Product Parameter (Specification)

Model Code:	DB116	Pulse Valve:	VNP/VEM216 VNP/VEM316 VNP/VEM416 VNP/VEM616 VNP/VEM716
Material:	NBR, Viton	Make:	PENTAIR MECAIR
Size: G2″

1. Working Temperature: -10~+55℃;

2.Working Medium: clean air

3.Humidity: less than 85%

4.Blowing Supplier Pressure: it's better 0.2~0.3Mpa,or0.3~0.6Mpa.

5.Blowing Tolerance: when blowing supplier pressure is 0.25Mpa and blowing time is 0.1 second.

Available Models of Diaphragm Repair Kit For MECAIR Pulse Valves:

Ordering code	Fitted valve code	Valve port size	Material
DB16	VNP206, VEM206, VNP306, VEM306	3/4''	Nitrile/Buna
DB18	VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708	1''	Nitrile/Buna
DB112	VNP212, VEM212, VNP312, VEM312, VNP412, VEM412	1-1/2''	Nitrile/Buna
DB114	VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714	1-1/2''	Nitrile/Buna
DB116	VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716	2''	Nitrile/Buna
DB120	VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720	2-1/2''	Nitrile/Buna

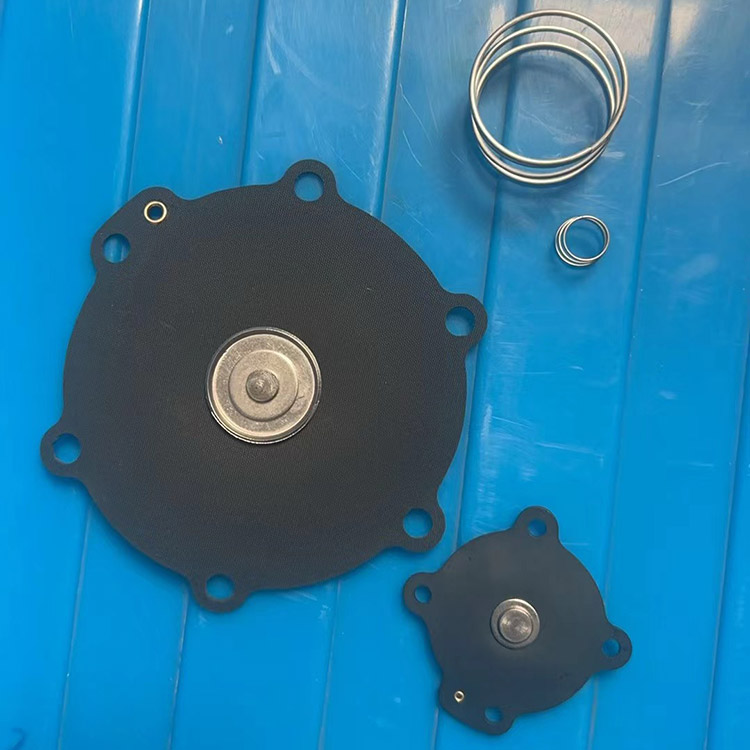

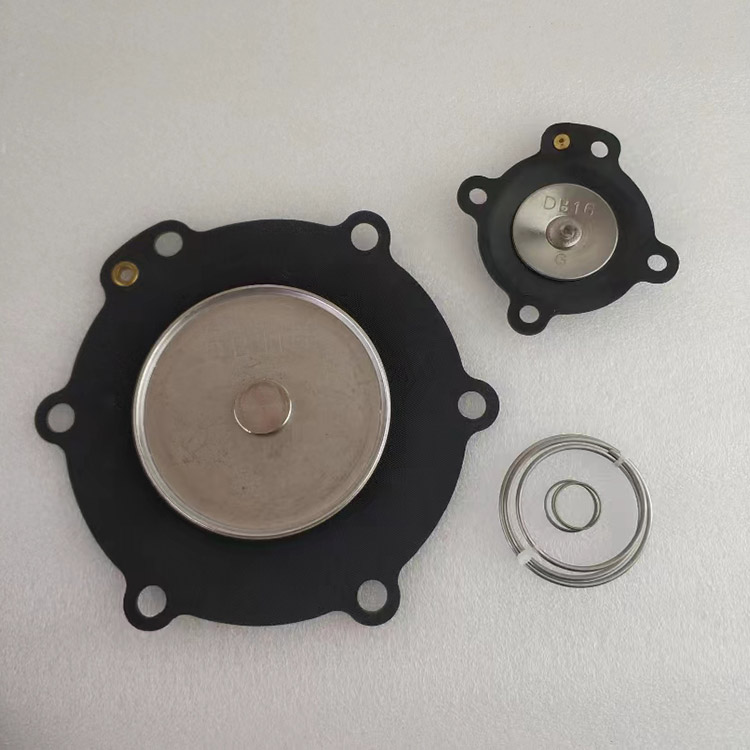

Diaphragm kits typically contain the replacement diaphragm(s) as well as the spring(s).
