MD Pulse Valve

Overview of MD pulse valve

Electrically controlled MD pulse valve is the compressed air 'switch' in the pulse bag filter blowing and cleaning system, which is suitable for the connection between the air storage cylinder and the dust collector blowing pipe, and is controlled by the output signal of the pulse controller, and blowing and cleaning the filter bag.

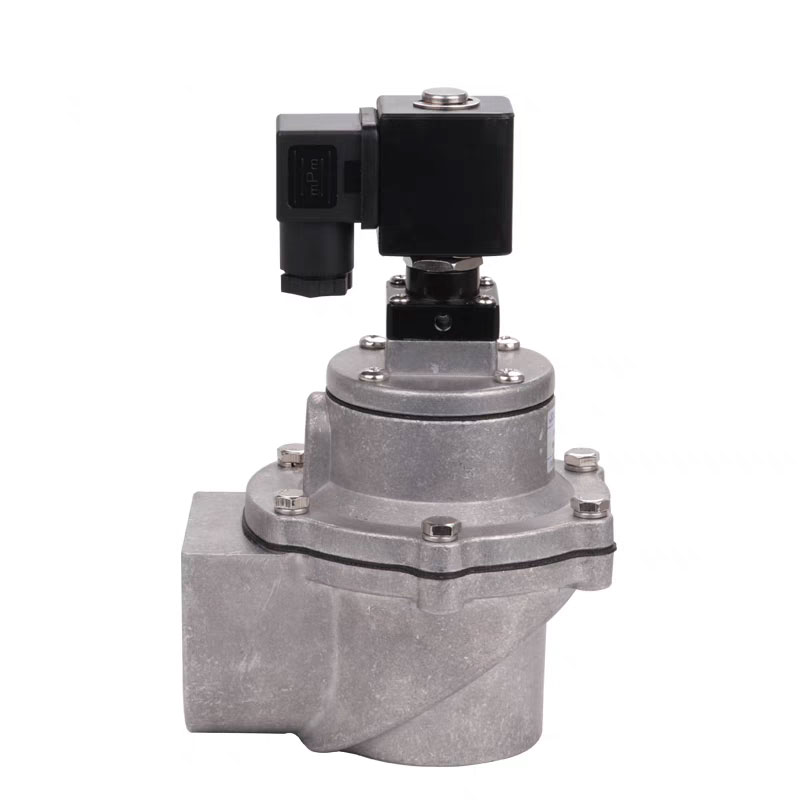

Right-angle type valve, the angle between its inlet and outlet is 90°, suitable for the installation link between the air bag and the blowing pipe, the air flow is smooth, and it can provide the soot-cleaning air pulse that meets the requirements.

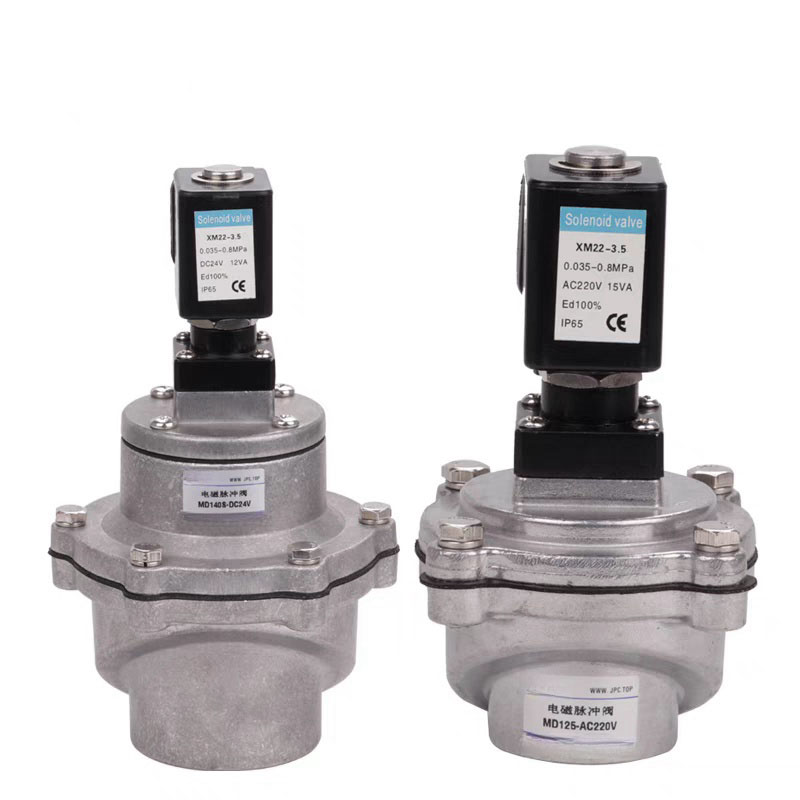

Submerged valve (also known as embedded valve), which is directly installed on the gas bag, with the circulation characteristics. Pressure loss has been reduced, suitable for the work of the lower pressure of the gas source.

Straight-through valve, the angle between its inlet and outlet is 180° (the inlet and outlet lines are the same straight line), its inlet is connected with the air storage cylinder, and its outlet is connected with the blowing pipe. The air flow is smooth, and it can provide the dust-cleaning air pulse that meets the requirements.

How the MD Pulse Valve Works

The MD pulse valve operates as an essential component in pulse bag filter cleaning systems. It acts as an air switch, controlling the flow of compressed air to clean dust from the filter bags. The diaphragm design separates the valve into two chambers. When compressed air enters the valve, it forces the diaphragm to seal the valve outlet, placing the valve in a "closed" state. When a signal is sent to the pulse controller, the valve quickly switches to an "open" state, allowing the compressed air to blow out dust, keeping the system clean and efficient.

The MD pulse valve has the following features:

1. the solenoid valve adopts the technology of isolation casing. fast response time. rapid direction change. wiring direction can be adjusted arbitrarily within 360 degrees. The product has various wiring forms and can be used together with pulse controller.

2.Diaphragm is made of imported special rubber stamping. high pressure resistance. long life.

3. the valve body. valve cover using die-casting technology. surface electrophoresis treatment. good anti-corrosion performance. beautiful appearance. compact structure. easy to install.

4.The internal flow path of the valve body is optimally designed. with large exhaust volume and rapid exhaust. The filter can be cleaned to blow away the objects or workpieces.

5.Diaphragm assembly adopts special sealing structure to ensure no leakage.

MD Pulse Valve Model Description

MD Pulse Valve Technical Parameters:

Purchase Your MD Pulse Valve Today

Looking for a fast and efficient solution for your pulse cleaning system? The MD Pulse Valve delivers quick response times and durable performance in even the most demanding industrial environments. Order now and upgrade your filtration system with a pulse valve designed for optimal dust cleaning.
