The pulse jet valve is a crucial component of industrial dust filtration systems, engineered to deliver efficient and precise cleaning. Its rapid opening and closing mechanism effectively removes dust while conserving compressed air, ensuring optimal system performance. Designed for durability and reliability, these valves are ideal for maintaining air quality in industries such as cement, steel, and power plants.

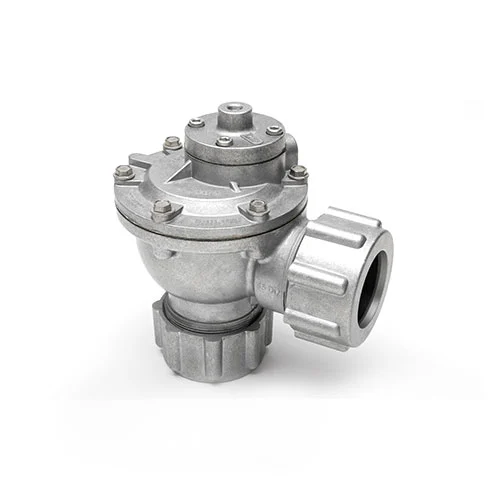

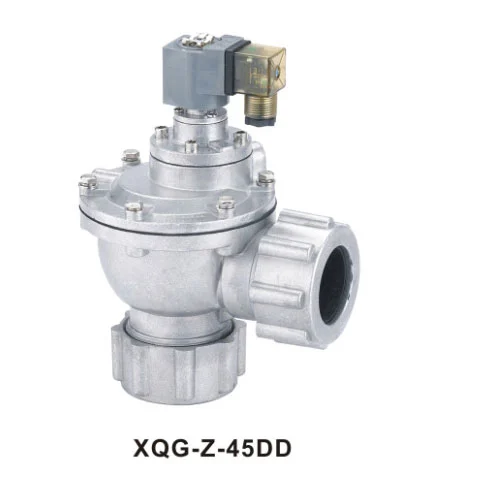

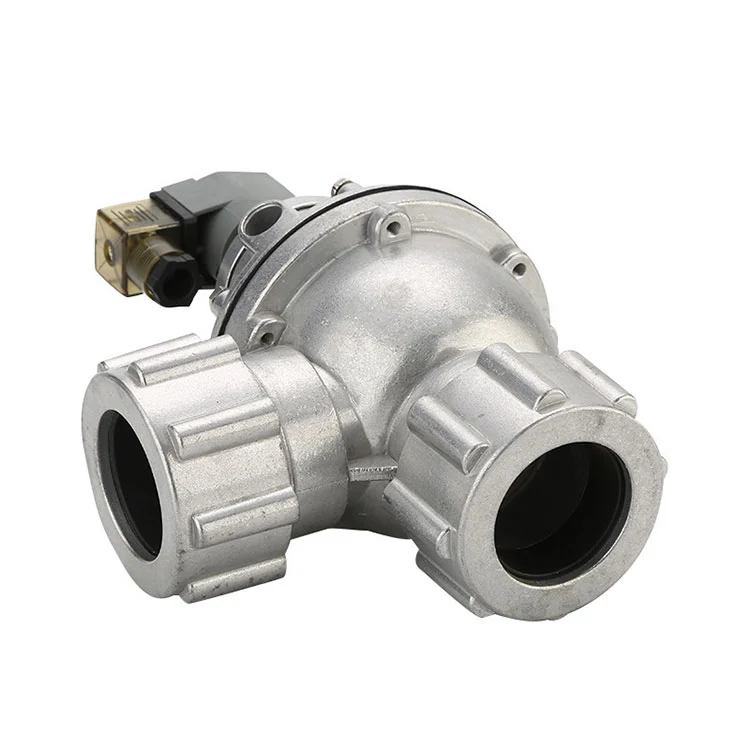

Our high-performance diaphragm valves feature dresser nut ports and are available with an integral pilot or as remotely piloted valves. The outlet is positioned at a 90° angle to the inlet, offering flexibility and efficiency in installation.
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA3D2, RCA25DD, RCA45T, RCA50T
Body and Dresser Nuts: Aluminium(diecast)
Ferrule: 305 SS
Armature: 430FR SS
Seals: Nitrile or Viton
Spring: 304 SS
Screws: 302 or 304 SS
Dresser Nut Seals: Nitrile or Viton
Diaphragm Seat: PA-66 (standard), Viton coated mild steel or High Density PE.

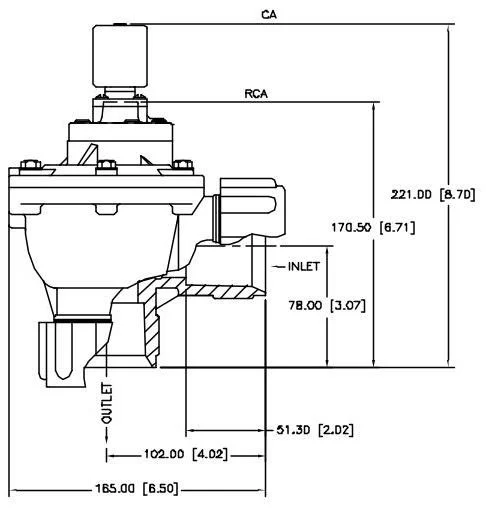

Diagram of CA/RCA45DD
Model | RCA20DD | RCA25DD | RCA45DD | |
Nominal Size | 20 | 25 | 45 | |
Port size | mm | 20 | 25 | 40 |
in | 3/4 | 1 | 1 1/2 | |
Number of Diaphragms | 1 | 1 | 2 | |
Flow | Kv | 12 | 20 | 44 |
Cv | 14 | 23 | 51 | |
Pressure (Psi) | 5 to 125 | 5 to 125 | 5 to 125 | |
Temperature℃ | NBR | -40 to 82 | -40 to 82 | -40 to 82 |
FKM | -29 to 232 | -29 to 232 | -29 to 232 |
