Compact Piston Pulse Valve

Qingdao Star Machine Technology Co. Ltd is one of top ten quality compact piston pulse valve manufacturer and supplier in China. SMCC series Compact Piston Pulse valve also name as diaphragm valve, which usually used in pulse bag filter as the switch of the air compression in dust clearing system, under the control of the output signal from the pulse jet control device, it will blow the filter bag row by row in order to clean the dust. Also, it keeps the pressure of the dust collector in the given range, which can guarantee the processing capacity and the dust collecting ability of the dust collector.

Send Inquiry

Product Description

Compact Piston Pulse valve

SMCC Compact Piston pulse valves with a compact structure are suitable for some special conditions such as high temperatures, strong acids and alkaline, rubber in existence, etc. It helps the dust collector to keep the airflow fluently and supply the requested air pulse for dust cleaning. Qingdao Star Machine is the direct sales factory, with strong technical support in our own brand SMCC. Bulk Compact Piston Pulse valve can be produced and provided in short delivery cycle with high quality and prompt services.

Key Features:

Condition :	100% New
Quality :	Good
Features :	Durable, High performance
Advantages :	Easy to Install
Durability :	Long life, one million times cycles
Usage :	For Industrial bag filter

Technical Specification:

Model NO.	V1617803-0100 OPTIPOW PULSE VALVE105 (24VDC)
Operating Pressure	0.2-0.6MPa
Ambient Temperature	-50 ºС to + 110 ºС
Medium Material	Clean Air
Dust Collecting Method	Half Dry
Type	Filter Cartridge Dust Collector
Installation Method	Vertical
Operation Type	Automatic
Usage	Home, Industry, Car, Medical, Engineering
Air Volume	>400m³/H
Application Area	>70m² for 22 pcs filter bags
Operating Principle	Active + Passive
Anion Density	>4000000PCS/M³
Structure	Portable, Central Air Conditioners
Purifying Technology	Synthetic Fiber, HEPA
Transport Package	According to Customer Requirements
Trademark	SMCC OR NO MARK
Origin	China
HS Code	8481100090
Production Capacity	20000

Advantages:

1. Compact structure

COMPACT INSTALLATION DISTANCE

Comparison of installation distance between SMCC series compact piston pulse valve and ordinary diaphragm pulse valves of the same specification

Note: The installation distance of Optipow Compact Piston Pulse valve 105 is 180mm (minimum up to 160mm).

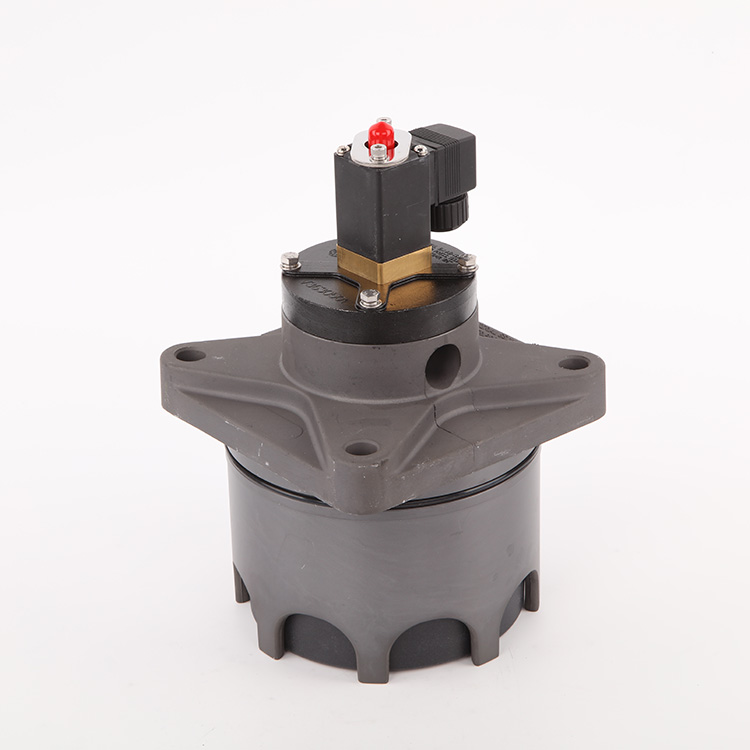

PRODUCTS IMAGES:

Safe package:

Operational Requirements:

1. Only when used under permissible conditions can the quality compact piston pulse valve (optipow jet pulse valve) be safe and reliable and their performance guaranteed, otherwise users will be responsible for any damage and injuries caused as a result of not adhering to the service conditions.

2. Before installing the compact piston pulse valve, clean the piping systems(including the air tanks) and ensure no foreign matters such as rust and welding slag.

3. After continuous running, the surface temperature of the compact piston pulse valve solenoids may reach up to 120℃.

4. Prevent the air source from freezing, otherwise the compact piston pulse valves will fail to run.

5. Make sure the power supply is disconnected when installing an optipow105 compact piston pulse cleaning valve.
