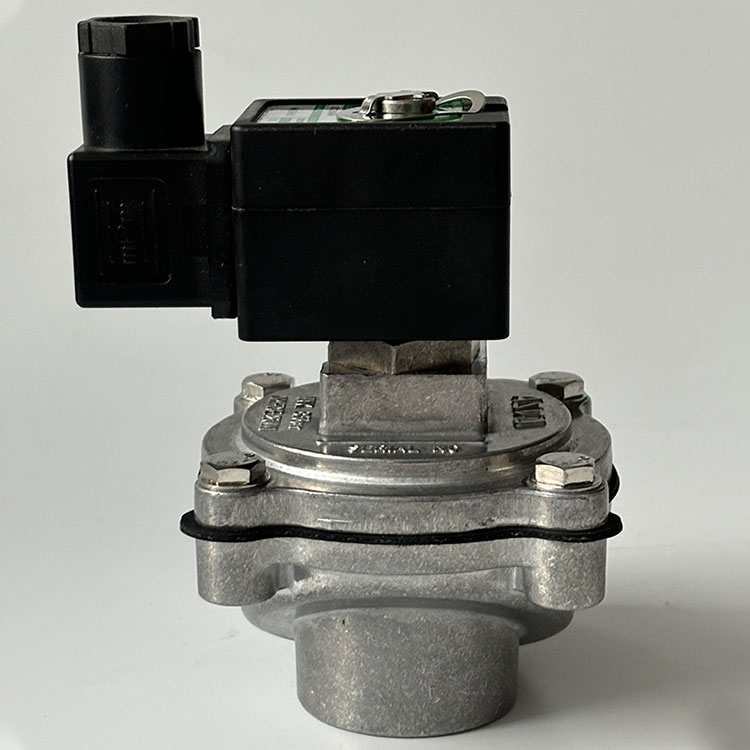

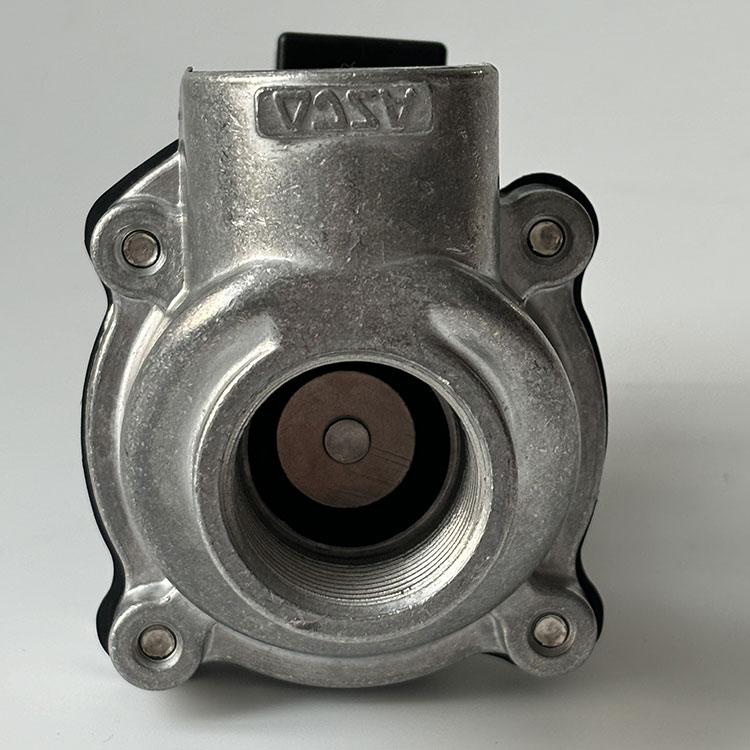

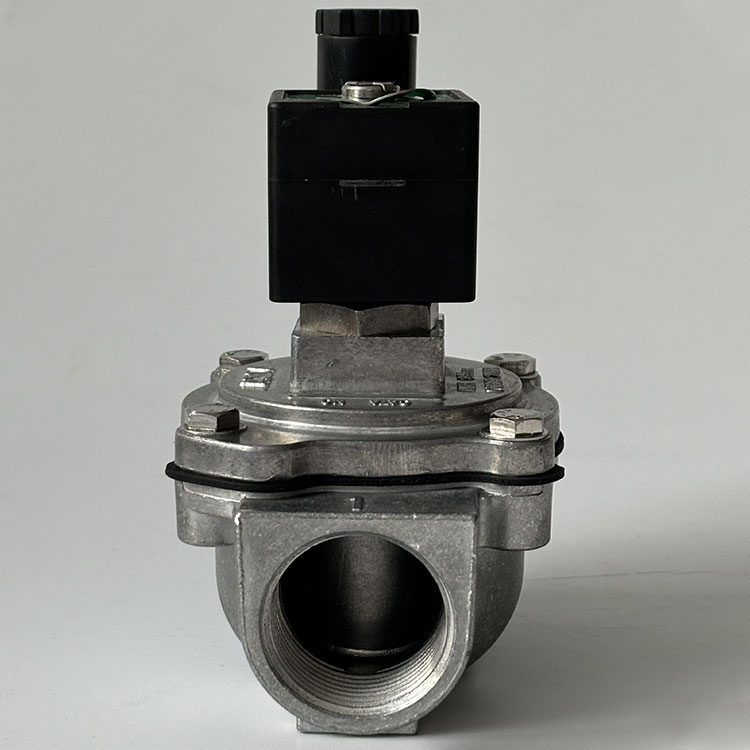

Series 353 Solenoid Pilot Operated Diaphragm Valve

Series 353 Solenoid Pilot Operated Diaphragm Valve from Qingdao Star Machine are custom-designed for use in blowback bag filter systems. Boasting a robust flow rate reaching 140 Cv, these valves enhance the efficiency of bag cleaning. Crafted to be long-lasting, these devices provide superior longevity and frequent cycling for extended durations of uninterrupted use. The 353 Series solenoid valves, which are designed for the purpose of controlling fluid flow, possess characteristics that allow for rapid opening and closing actions. This feature, in turn, aims to enhance the efficiency of systems where they are utilized. These valves, they are constructed from materials that are of high quality, which can endure the stresses and wear that may arise from operations that happen frequently and at high rates. This endurance is critical, as it ensures that the operation remains stable and reliable, particularly during those moments that are deemed critical. Therefore, one could say that these valves are an ideal choice, especially for systems that are involved in the removal of dust in industrial settings, which often require such reliability. Thus, the 353 Series valves stand out as a considerable option for those looking to maintain efficiency in their operations.

Send Inquiry

Product Description

Product Application

Qingdao Star Machine Series 353 Solenoid Pilot Operated Diaphragm Valve is widely used in industrial equipment such as thermal power plants, glass factories, flour mills, cement factories, and mining,etc.

Series 353 Solenoid Pilot Operated Diaphragm Valve

Product Dimensions

Series 353 Solenoid Pilot Operated Diaphragm Valve

Cat.No.	"E"NPT	"G"NPT		H	L	P	S	T	W	X
8353J39	3/8	11/2	ins	6.28	5.16	5.08	2.78	1.61	5.38	0.44
8353J39	3/8	11/2	mm	159.5	131.0	129.0	70.6	40.9	136.5	11.1
8353G61	3/8	11/2	ins.	6.28	5.16	5.08	2.78	1.61	5.38	0.44
8353G61	3/8	11/2	mm	159.5	131.0	129.0	70.6	40.9	136.5	11.1
8353G50	3/4	2	ins.	8.25	6.63	6.47	3.75	2.56	6.50	——
8353G50	3/4	2	mm	209.6	168.3	164.3	95.3	65.1	165.1	——
8353G51	3/4	21/2	ins.	8.25	6.63	6.47	3.75	2.56	6.50	——
8353G51	3/4	21/2	mm	209.6	168.3	164.3	95.3	65.1	165.1	——

Series 353 Solenoid Pilot Operated Diaphragm Valve Parameter(Specification)

Connection	3/4 BSP
Differential air pressure max	8.5 bar
Differential pressure min	0.35 bar
Flow factor / flow coefficient	14
Flow max	233 l/min
Function 1	2/2
Function 2	Normally Closed (SPST)
IP class	IP65
Material body	Aluminium
Material coil	Epoxy
Material membrane	TPE
Material of seals	NBR
Material plunger	Stainless steel
Material plunger tube	Stainless steel
Material short-circuit ring	Copper
Material spring	Stainless steel
Power consumption	6 W
Pressure max	10 bar
Temperature of media from	-20
Temperature of media to	85
Temperature operational max	85
Temperature operational min	-20
Throughput	25 mm
Weight	0.7 kg
Voltage AC	230 V

Product Advantages

The 353 Series solenoid-operated diaphragm valve saves energy, provides optimum filter cleaning performance, and significantly reduces air usage.The Series 353 Solenoid Pilot Operated Diaphragm Valve offer high peak pressures, a wide range of temperatures and are easy to install.

Packaging & Transportation

Package Type: Inner box and carton

Transportation methods for Series 353 Solenoid Pilot Operated Diaphragm Valve can be freely and flexibly selected according to customer requirements. Our logistics transportation and distribution partners include FEDEX, DHL, UPS, TNT, sea express, sea LCL, and container sea freight specialist service.

Warranty

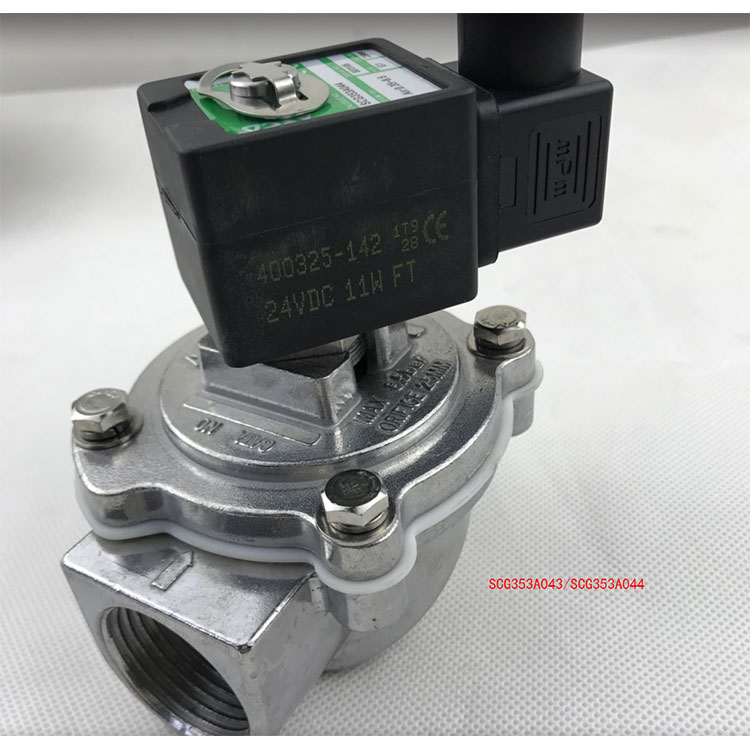

Every Qingdao Star Machine Series 353 Solenoid Pilot Operated Diaphragm Valve and its spare parts like this ASCO SCG353A043 SCG353A044 valve is manufactured at our own factories and subject to strict quality controls. Qingdao Star Machine Series 353 Solenoid Pilot Operated Diaphragm Valve meet the highest quality standards and are built to last. We offer 1-years warranty extension for each Valve.

Service

7*24hous Expert On Line, whether accessories or the entire equipment of Qingdao Star Machine Series 353 Solenoid Pilot Operated Diaphragm Valve failure due to quality issues, it will be replaced free of charge during the warranty period.
