Compact Pulse Valve

Qingdao Star Machine is one of top ten compact pulse valve manufacturers and suppliers in China with our own brand SMCC. We have specialized in compact pulse valve, solenoid pulse valve, right angle pulse jet valve and other industrial air cleaning valves for 20 years and export our valves to more than 30 countries with strong technical support, good quality and services.

Send Inquiry

Product Description

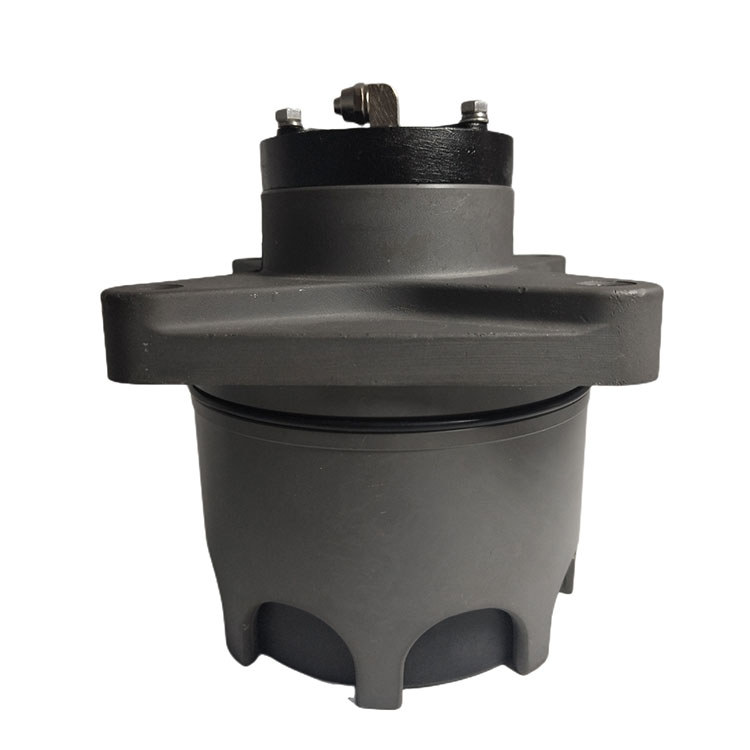

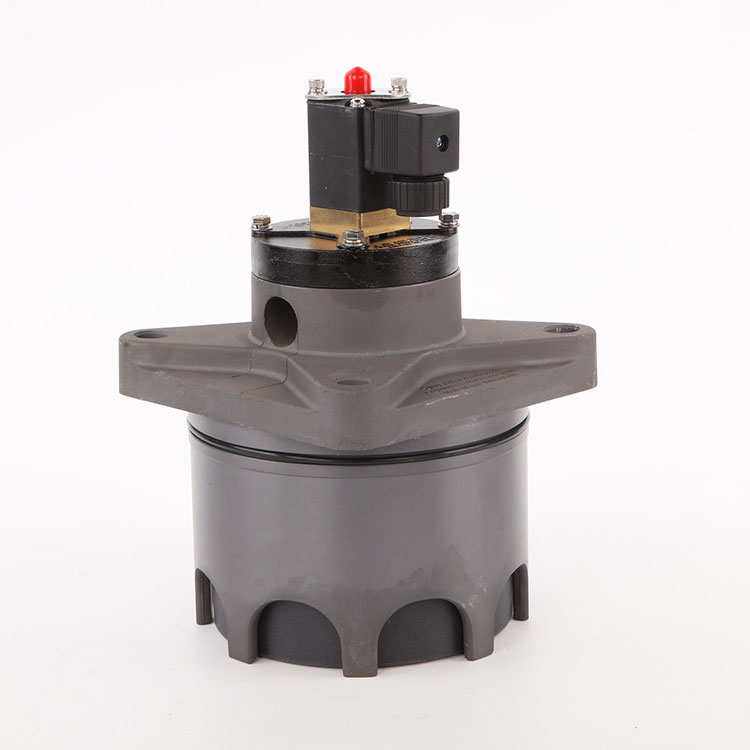

SMCC high quality Compact pulse valve is a new type of pulse valve, with main advantages including high efficiency, low loss of compressed air, and compact structural dimensions.

Compared with traditional pulse valves, compact pulse valves of SMCC brand have a faster opening time, resulting in very small impact pressure loss. Moreover, due to the easy control of the opening sequence, the optimal gas volume can be selected according to different processes. In addition, the compact pulse valve consumes less compressed air and has a smaller structural size, which means that the spacing of the filter bag is not limited by the size of the valve.

Overall, compact pulse valves are efficient, energy-saving, and compact, suitable for various situations that require high-precision control of gas flow.

Basic information:

KEY FEATURE	DESCRIPTION
Name	Starmachinechina Pulse Jet Valve
MODEL	V1614718-0100
SIZE	4 INCH
Voltage	DC24V
Nominal diameter	DN100
Condition	100% New
Brand	SMCC
Quality	Good
Features	Durable, High performance
Advantages	Easy to Install
Durability	Long life, one million times cycles
Usage	For Industrial bag filter
Working medium	Clean dry compressed air
Injection time(Pulse width)	60-100MS
Pulse interval time	≥60S
Filter area	120㎡
For Filter bag	27 piece
Working Pressure	0.2-0.6MPa
Protection grade	IP65
Insulation grade	H
KV/CV value	518.85/605.5
Warranty	24 months

Compact pulse valve main parts and similar models:

Compact Pulse Valve

The main material of main parts of compact pulse valve:

Part	Material
Valve house	aluminum alloy ABC-12
Plunger	reinforced nylon 66
Membrane	buna-N rubber
Rubber Disc	special rubber
O-ring	fluor rubber
Pilot Cover	aluminum alloy ABC-12

Compact structure of Compact pulse valve Starmachinechina 135:

1.Comparison of Structure between Starmachinechina 135 and diaphragm valves of the same specification:

Compact Pulse Valve

2. Comparison of installation distance between compact pulse valve Starmachinechina 135 and ordinary diaphragm pulse valve of the same specification

Compact Pulse Valve

Note: The installation distance of Starmachinechina 135 is the same as 180mm (minimum up to 160mm).

3. Starmachinechina compact pulse valve 135 matching air distribution box diagram (partial)

Compact Pulse Valve

Core performance of compact pulse valve:

1. Precise timing control: integrated intelligent timing control system, achieving pulse width of 50-200ms, increasing the cleaning efficiency of filter bags to 99.2%, and the cleaning completeness reaches the industry-leading level.

2. Multi-scenario adaptability: the piston is made of polymer material, suitable for harsh working conditions such as cement kilns, metallurgical blast furnaces, and chemical plants.
